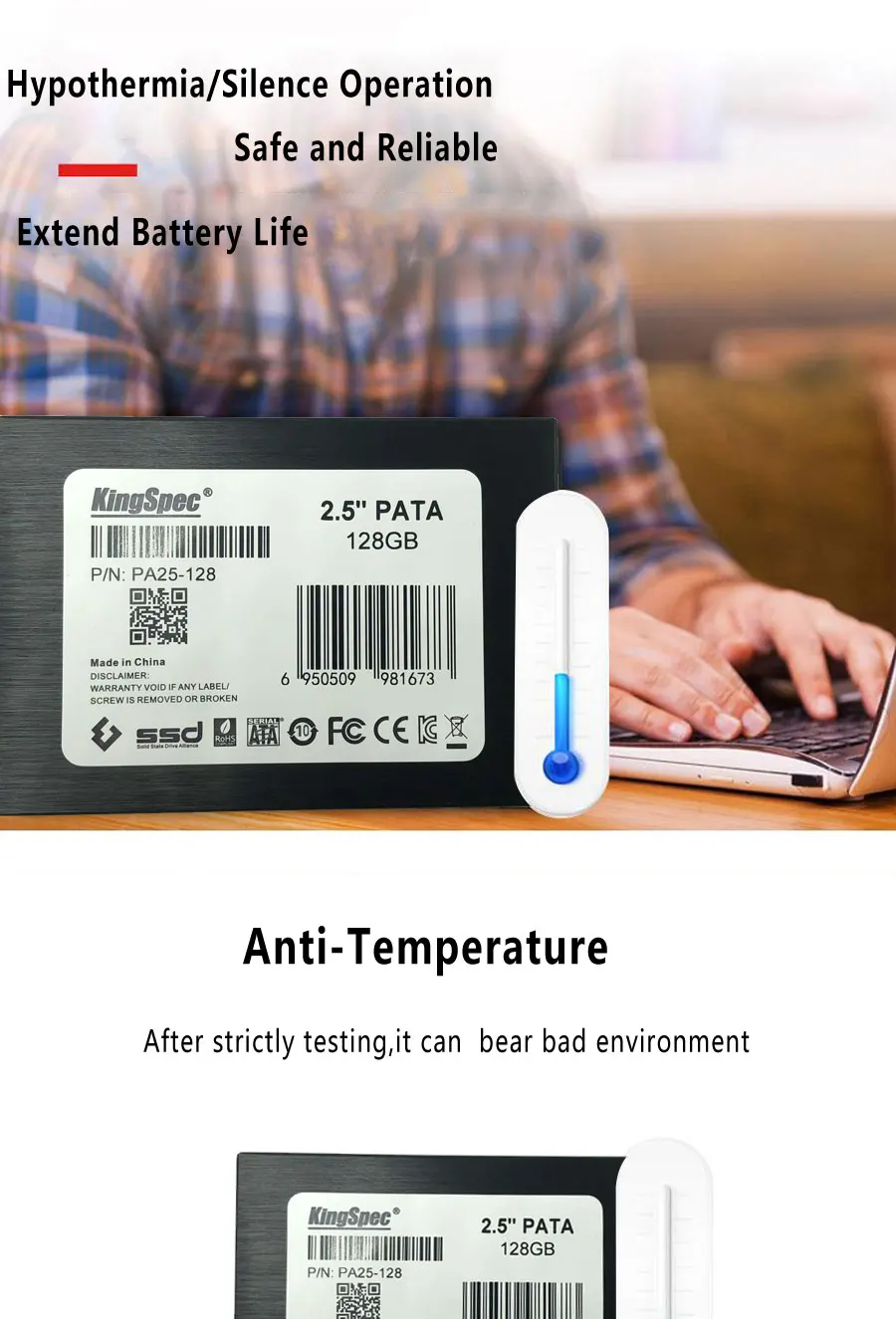

2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop

66.00137.00

+ Free Shipping
128GB16GB32GB64GB
Clear

Please format the SSD first before you use it according to the video we show,if it still not working,please contact us drsctly,thanks!



1. Why I bought 64GB USB, but the computer show it is about 58GB?

Because:

. Flash memory producers are using decimal arithmetic:

1KB=1000Bit, 1MB = 1000KB, 1G = 1000MB

‚. Calculated, the operating system using binary arithmetic:

1KB=1024Bit, 1MB = 1024KB, 1GB = 1024MB

And there is a hidden flash area occupy some capacity.

That is why there are some differences between display capacity and nominal capacity of flash  memory product.

8GB     = approximately 7.4GB-7.6GB

16GB   = approximately 14GB-15GB

32GB   = approximately 28GB-30GB

64GB   = approximately 58GB-60GB

128GB   = approximately 120GB-125GB

Product Description

What is Solid state drive?

Solid State Drives, which use flash memory instead of a hard-drive platter to store date.

Old computers had a habit of spitting files and spreading the parts all over your hard drives, but modern ones don’t do this as much. Not even close, a bimonthly pass with a capable Defragger can help you maintain peak performance on a heavily used hard drive.

Data transfer to and from solid-state drives is muchfasterthan electromechanical disk drives. Seek time and latency are also substantially reduced. Users typically enjoy much faster boot times as well. In general, SSDs are alsomore durableandmuch quieter, with no moving parts to break or spin up or down. SSDs do, however, have slower write times and a set life expectancy, as there is a finite number of erase/write cycles before performance becomes erratic.

1. Datasheet:

ModelPATA 2.5 MLC KSD-PA25.6-XXXMS
GeneralForm factor2.5
InterfacePATA
PerformanceCapacity8GB       | 16GB       | 32GB      | 64GB        | 128GB   | 256GB

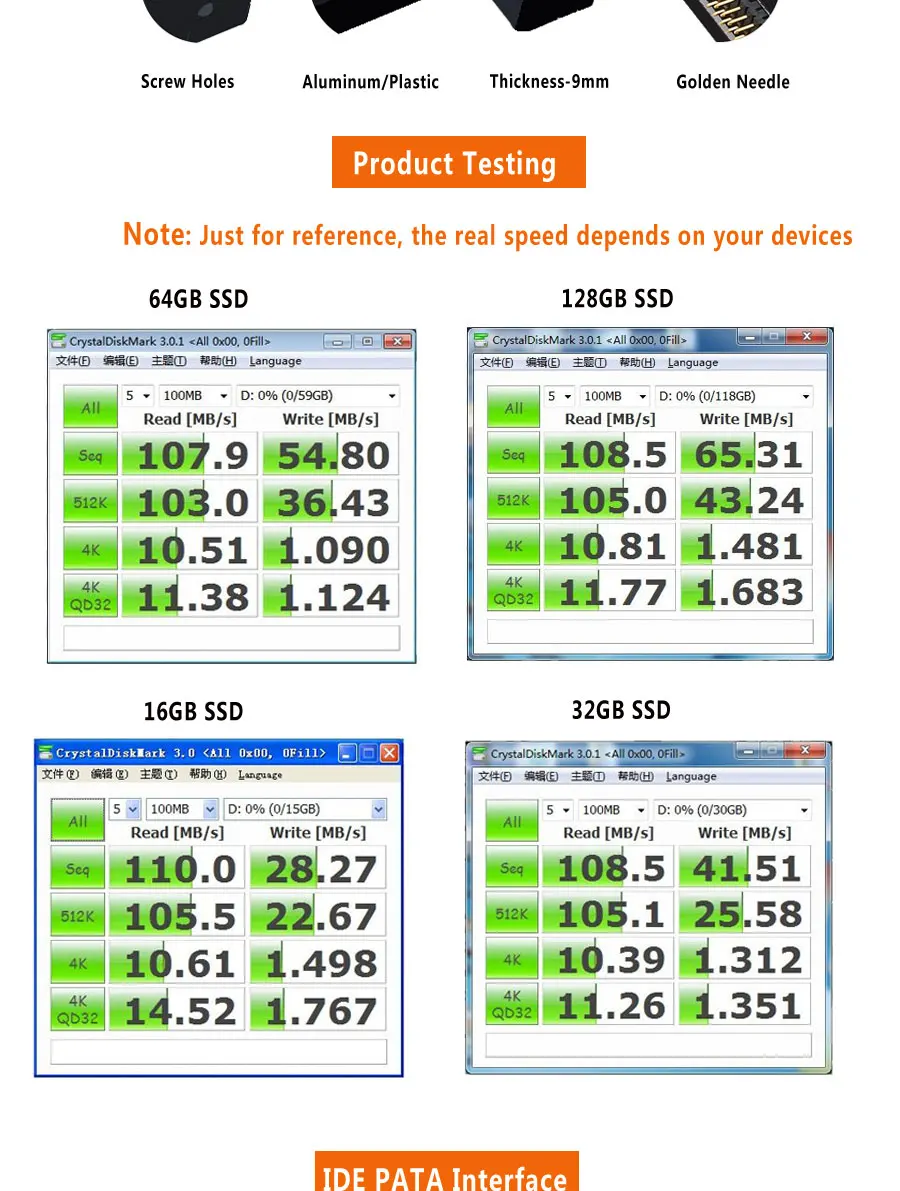

Sustained Read (for reference only)63MB/S | 110MB/S | 110MB/S | 112MB/S | 115MB/S | 118MB/S
Sustained Write15MB/S | 28MB/S    |  35MB/S  | 60MB/S   | 70MB/S  | 75MB/S
Random IOPS
4KB Random Read IOPS
4KB Random Write IOPS
Average Access time0.2ms
Storage MediaNAND FlashMLC- NAND Flash
Power Consumptioninput Voltage5V+/_5%
Idle0.5W
Active2.0W
Reliability& EnduranceWrite endurance80 years at 10GBytes write and erase per day at 32GB
Read enduranceunlimited
Wear-Leveling AlgorithmDynamic and static wear-leveling
Data Retention10 years at 25ºC
MTBF1,000,000hours
ECCSupports BCH ECC 8bits or 15bits in 512 bytes
Bad Block ManagementAuto Bad Block Management in system
EnvironmentOperating Temperature0~70ºC
Non-operating Temperature-40~85ºC
Shock2,000G(at 0.3ms half sine wave)
Vibration20G(40-2000HZ)
Ambient Humidity5-95%
Warranty3years
Available unitAvailableAvailable, NO EOL
Testing PlatformCPU: AMD Athlon 64×2 5200+ 2.7GHz,SDRAM:DDR2 800(PC6400) 2048 MB×1PCS, Mainboard:AMD RS780 (ATI Radeon HD 3200 Graphics)System:Microsoft Windows XP Professional SP2
Testing SoftwareHD Bench3.4.0.3, IOMeter 2006.07.27

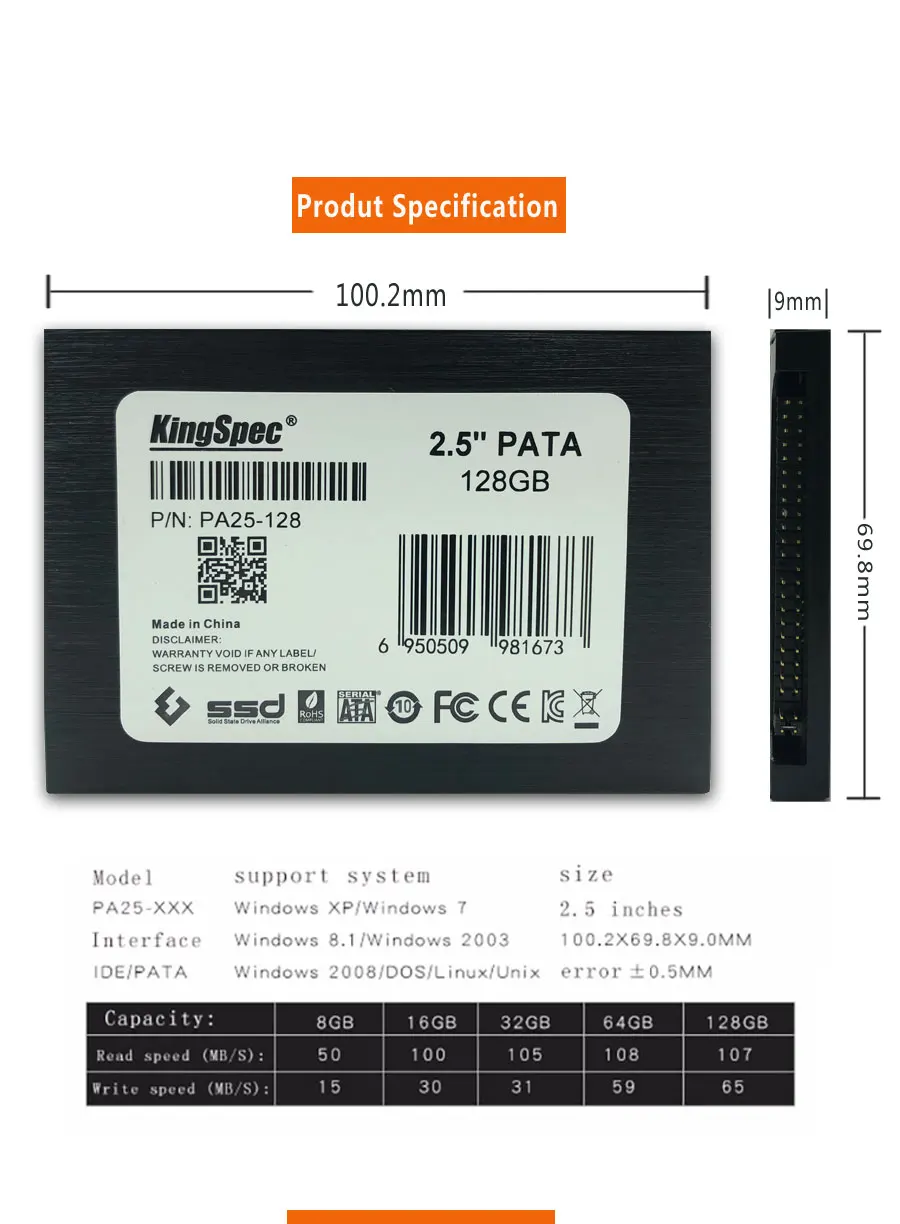

Physical Dimensions & WeightHeight(mm)9.5+/_0.25
Width(mm)69.8+/_0.25
Length(mm)100.2+/_0.25
Weight(g)70±5



2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop2.5 inch PATA 44pin IDE hd ssd 16GB 32GB 64GB 128GB 4C TLC Solid State Disk Flash Hard Drive IDE for Notebook Desktop







Weight10 kg
Dimensions3 cm
Brand Name

Urgrico

Origin

Mainland China

Compatible Brand/Model

PC

PC System

Windows 10

Hign-concerned Chemical

None

Model Number

Kingspec PA-XXX

Capacity

120g

is_customized

yes

Interface

PATA IDE

Feature

2.5inch IDE SSD

Feature 1

44pin IDE SSD Disk

Nand Flash Type

MLC/TLC

Feature 2

SSD IDE

Feature 3

IDE 44pin

Feature 4

2.5PATA Solid State disk drive SSD

Feature 5

16GB 32GB 64GB 128GB ssd disk

Feature 6

2.5 Inch PATA IDE hard disk

Feature 7

Laptop SSD

Feature 8

SSD disk IDE

Feature 9

Internal IDE SSD Drive/Disk

Choice

yes

semi_Choice

yes
