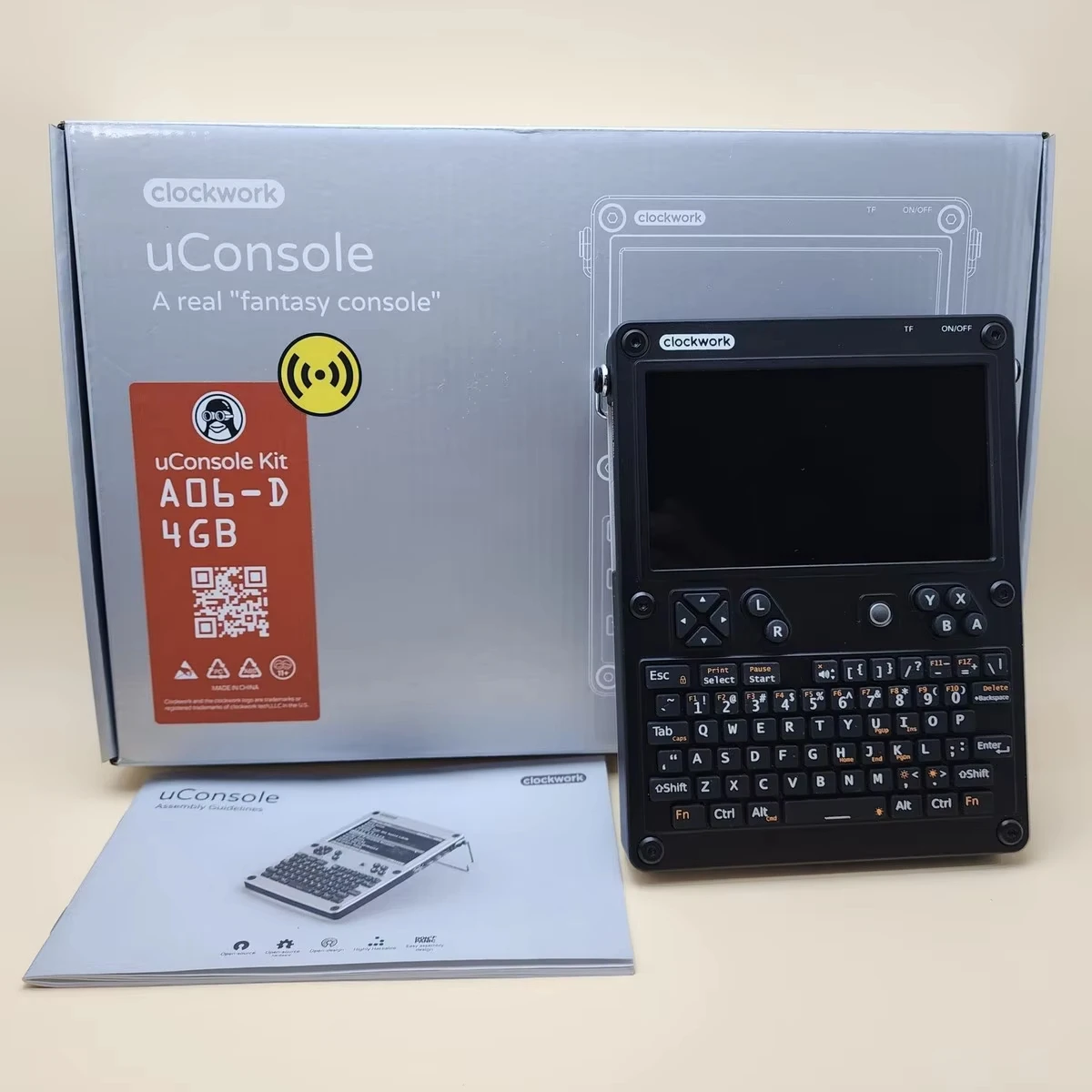

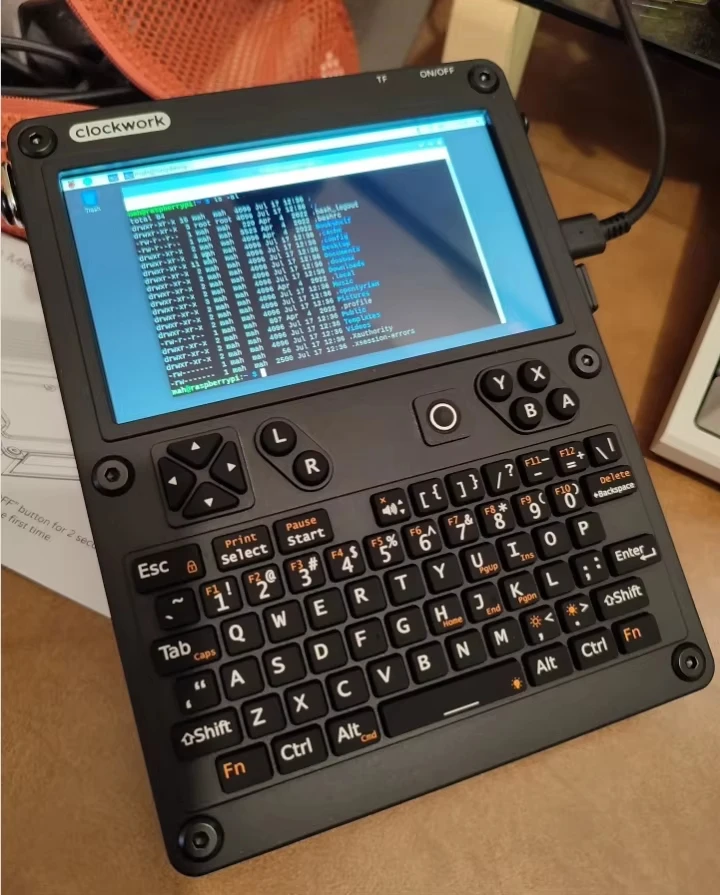

New 100% original uConsole clockwork kit available Raspberry Pi CM4 Lite motherboard and optional V3.14

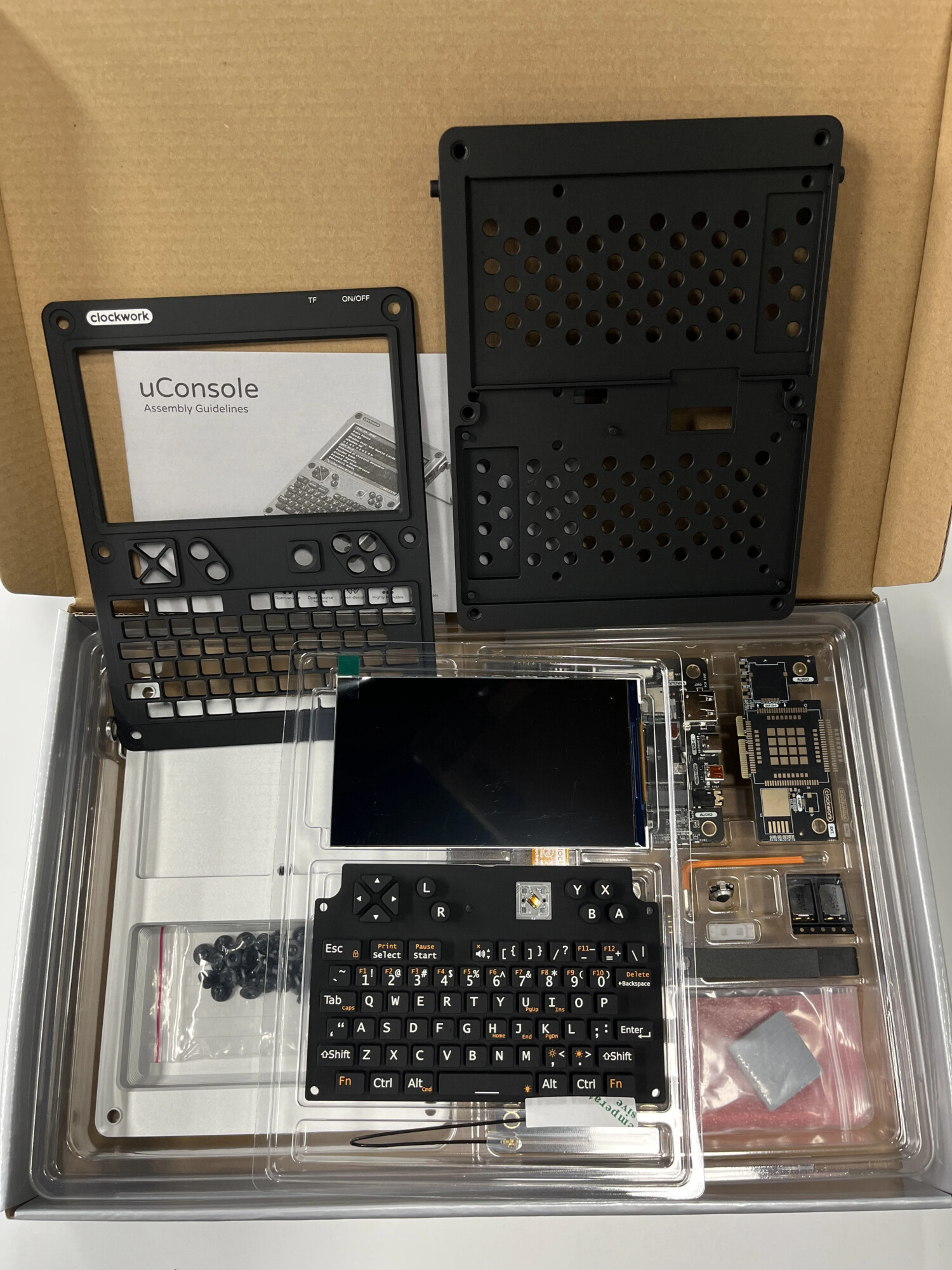

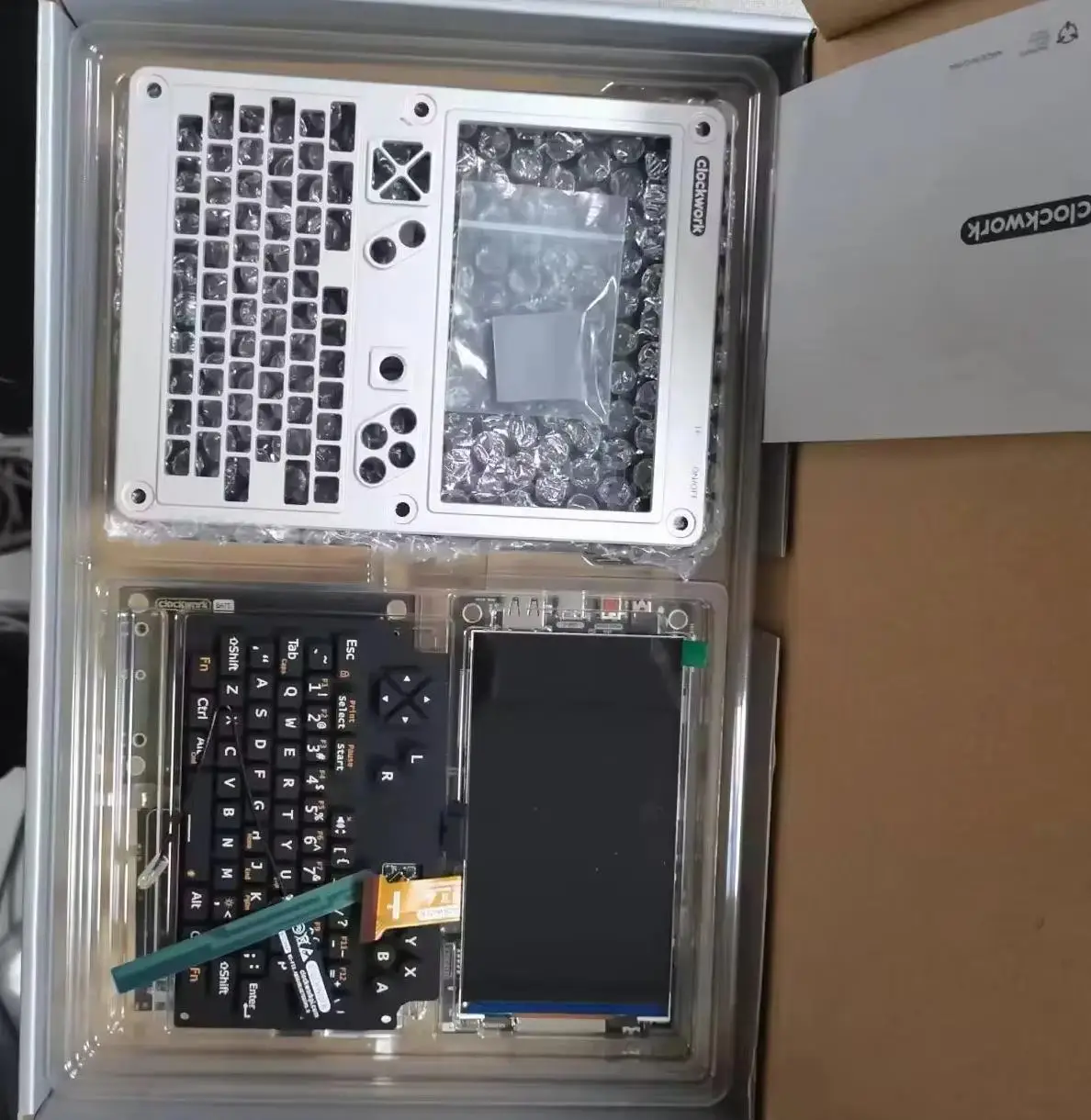

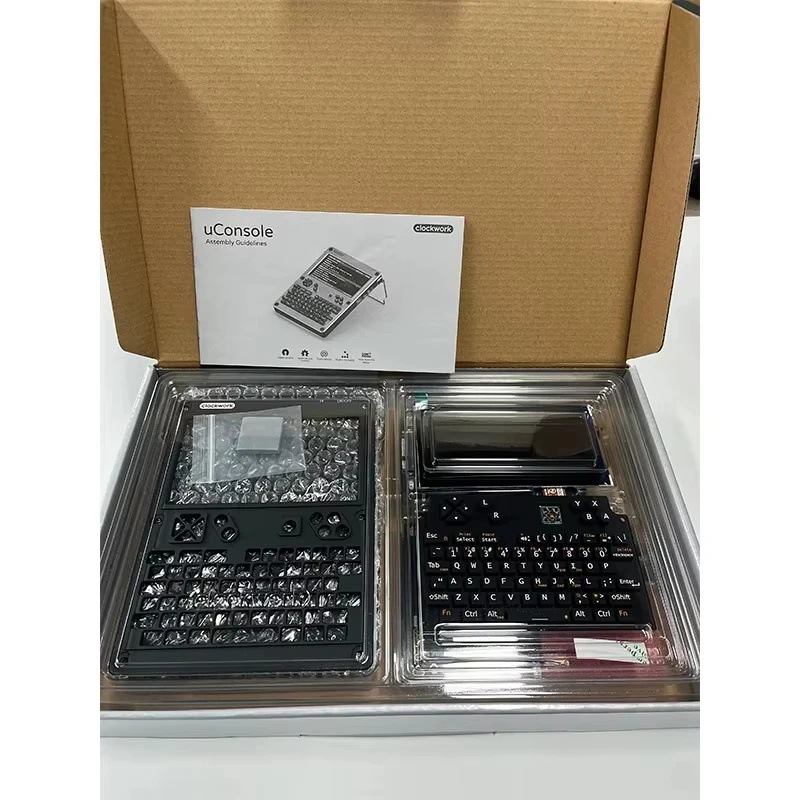

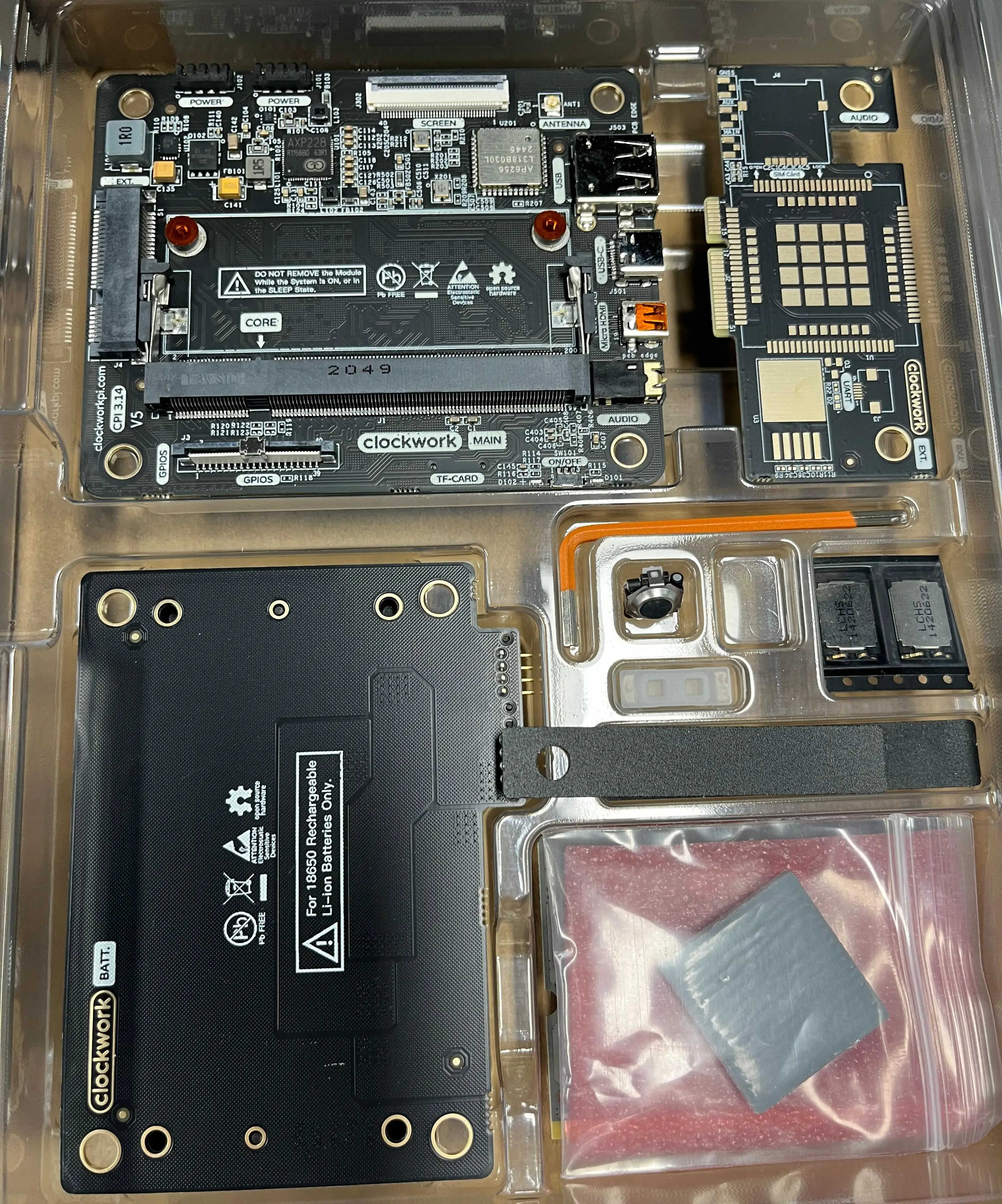

What’s in the box:

• Watchmaking Motherboard Pi V3.14 revision 5

• (Optional) Raspberry Pi CM4Lite (ARM Cortex-A72 quad-core, 4GB LPDDR4, WIFI 2.4GHz, 5.0GHz IEEE 802.11 b/g/n/ac wireless + Bluetooth 5.0, BLE)

• Raspberry Pi CM4 Information Module Adapter on the Motherboard

• WiFi Gain Antenna for CM4 Computer Module

• Ext.module

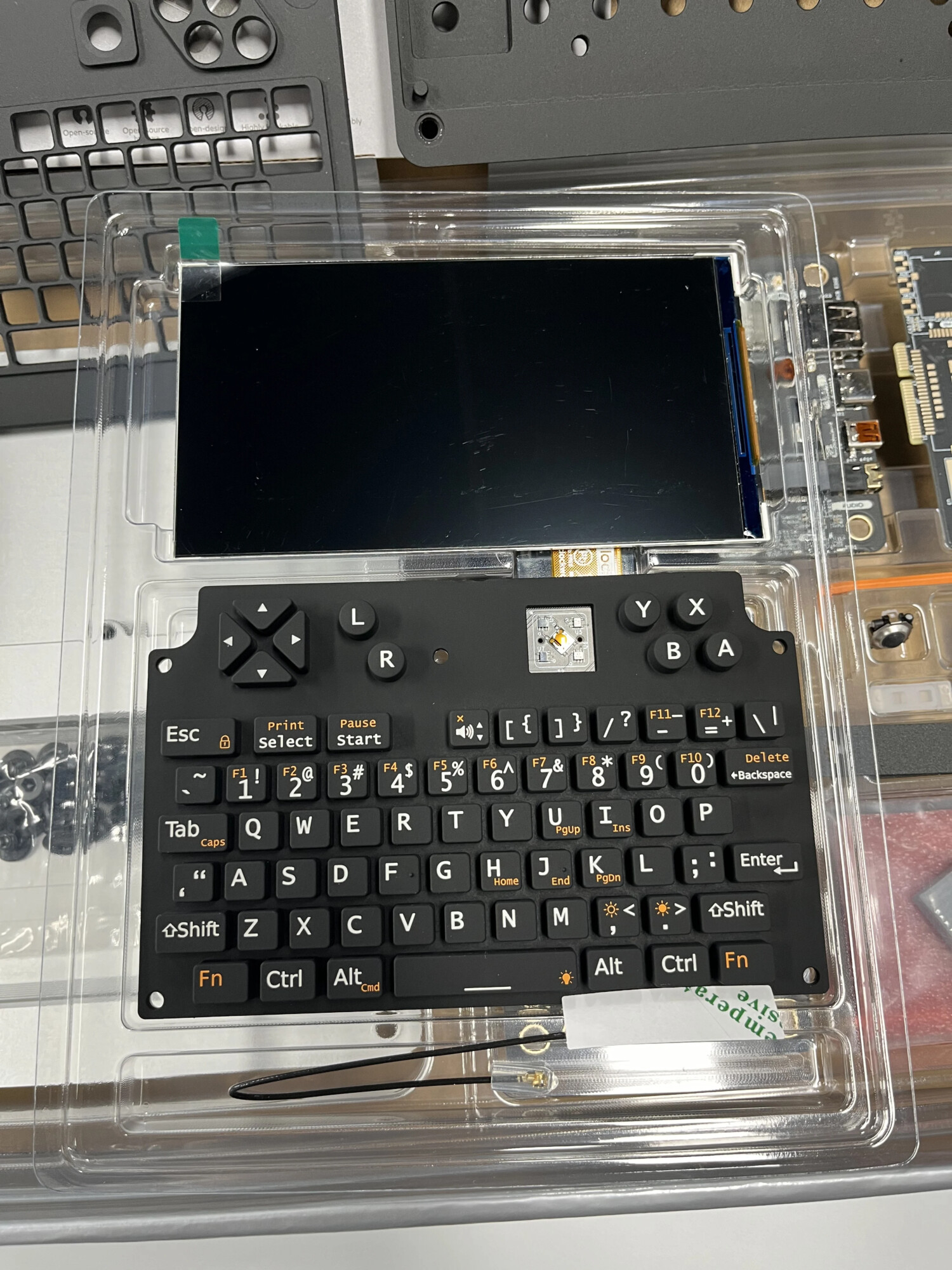

• 5.0-inch HD 720p standard IPS display

• Ultraportable QWERTY backlit clockwork keyboard

• Battery module*

• Dual speakers

• Shells and bracket system and 2.5mm hex key

• 32GB High-Speed TF Card with Clockwork OS*

*NOTE:

• 18650 batteries are NOT included in the package.

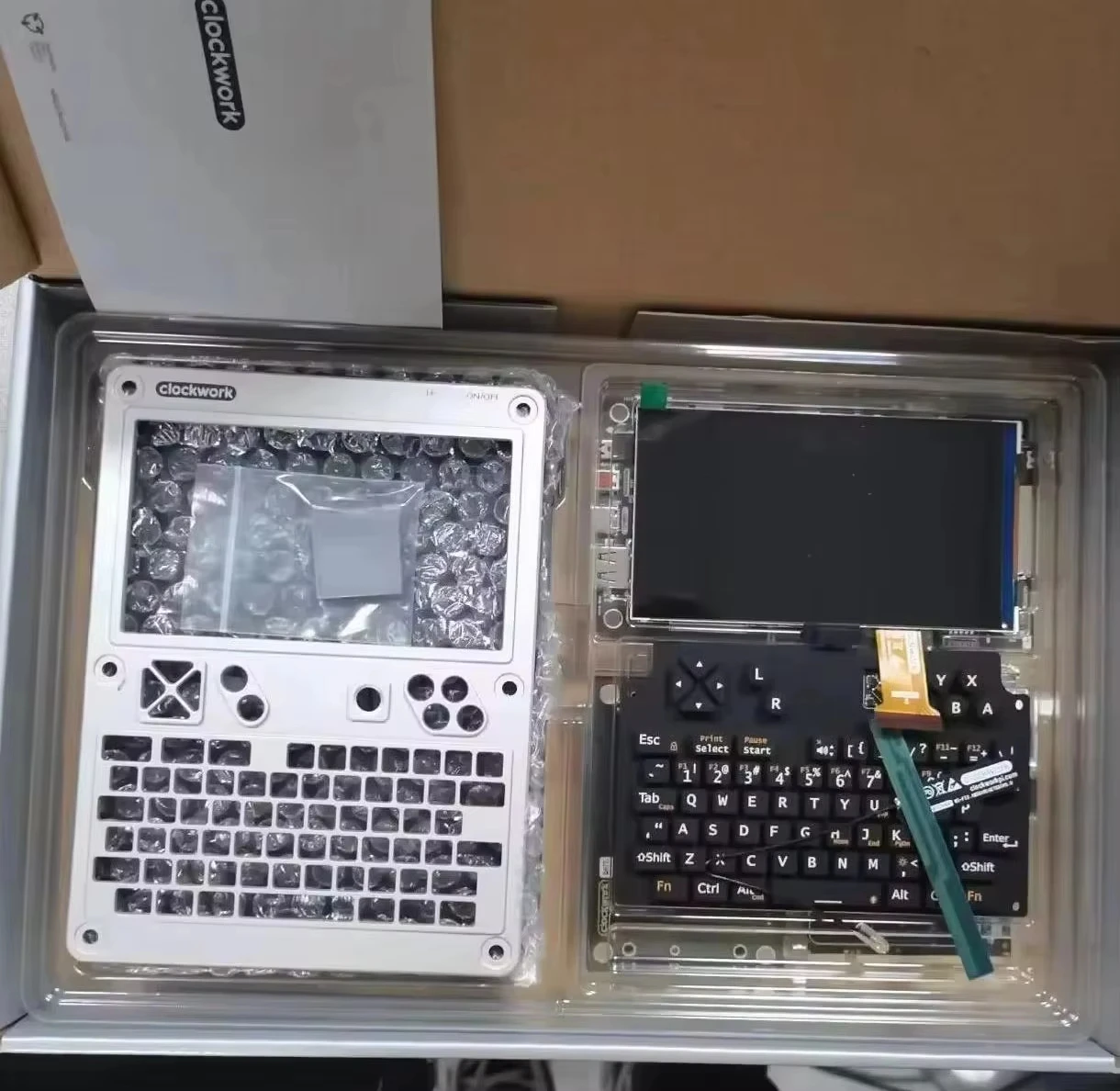

• 32G TF card is NOT included in the “Non-core” package.

• We will send this item in RANDOM COLOR: silver or black.

The technical specifications are as follows:

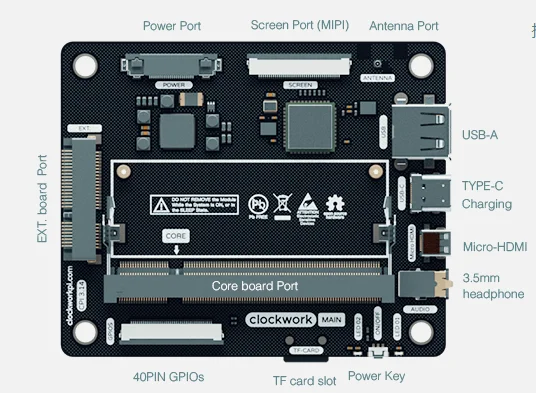

• CPI v3.14 features a compact design with small dimensions at 95×77 mm.

• Supports reliable and comprehensive management of lithium battery charging and discharging

• Built-in 5G-WIFI (802.11ac) + Bluetooth 5.0

• High Gain Antenna

• 1 x USB 2.0 standard port, 2 x internal USB 2.0 connectors, 1 x internal keyboard module contact connector

• USB-C charging port*

• TF Card Slot (Micro SD Card)**

• 40-pin MIPI screen interface

• Micro-HDMI interface

• 3.5 headphone jack, supports microphone input

• Built-in stereo audio amplifier chip

• 40-pin GPIO expansion interface (using standard 0.5mm FPC connector)

• 52-pin expansion module interface (using standard Mini PCI-E connector) for “EXT.module”

• Standard 200-pin DDR2-SODIMM interface: Connects CPI v3.14 to the “Core Module”

Up to 12 interfaces are integrated to ensure adequate connectivity for work and entertainment. Following the easy-to-upgrade modular design of CPU and memory, you can freely choose the appropriate “core” for various application scenarios.

• Compatible with the Raspberry Pi CM3 and CM4 series (with adapter board), meaning that the work done on the Raspberry Pi can be “transported” to the Fantasy Console in seconds!

External 4G/LTE Cellular Modem Module

The module is compatible with global wireless data communications over LTE CAT4, HSDPA/HSUPA, HSPA+, UMTS, EDGE, and GPRS networks.

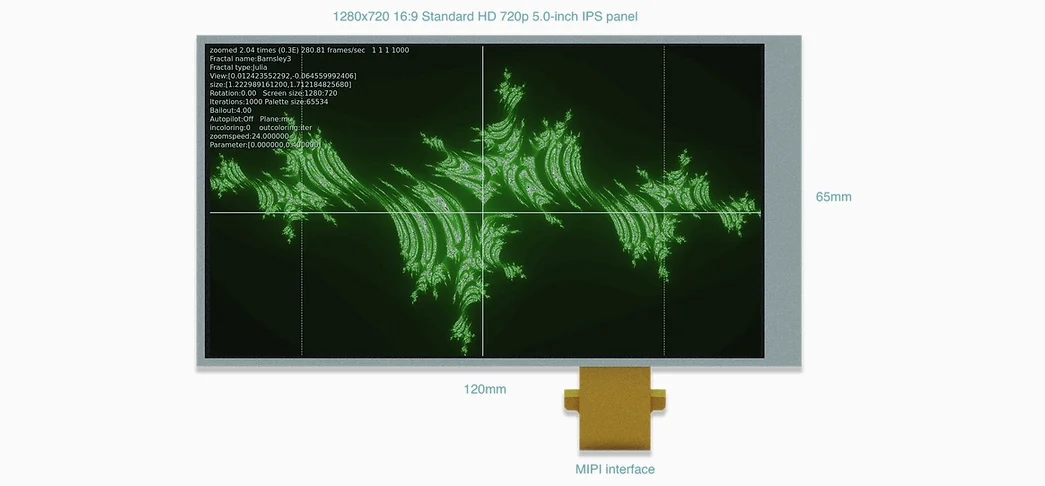

5.0-inch HD 720p standard IPS display

The 1280×720 resolution and 5-inch viewing area ensure visibility while providing good software adaptability and portability. For most applications, desktop environments and game emulators will run smoothly

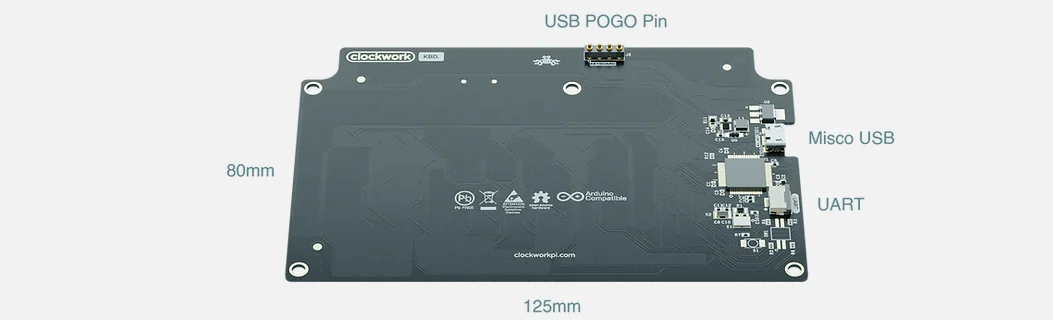

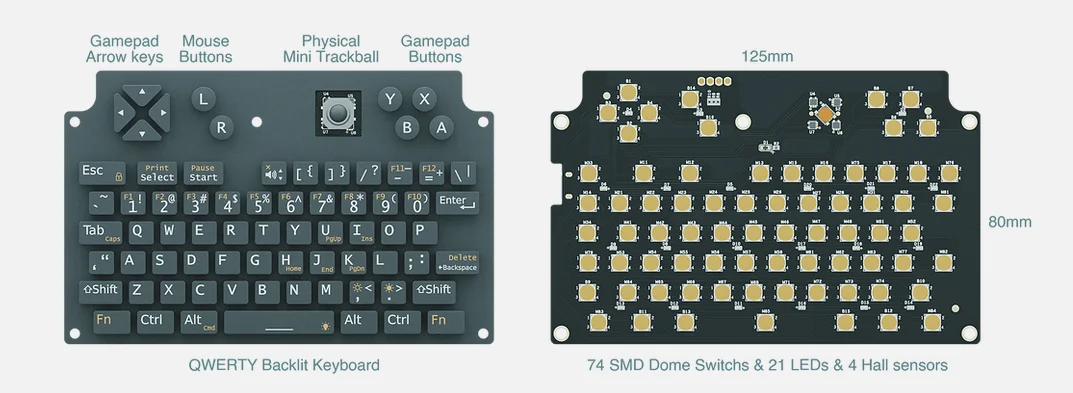

Tastiera retroilluminata QWERTY ultraportatile

Presentazione di una tastiera QWERTY ultraportatile con 74 tasti e retroilluminazione regolabile.Il trackball è un mini trackball fisico con funzione OK e due pulsanti del mouse, progettato con quattro sensori Hall Effect per elevata sensibilità e affidabilità.Include un set di tasti freccia per gamepad in stile retrò e quattro pulsanti di gioco; questi otto tasti adottano un design IO indipendente per garantire un ritardo di risposta minimo.

L’unità di controllo centrale della tastiera adotta il braccio® Architettura Cortex-M3 ed è completamente compatibile con l’ambiente di sviluppo Arduino STM32.La porta di programmazione Micro USB-UART consente di riprogrammare e personalizzare facilmente il firmware della tastiera.

Il pin POGO USB sul retro della tastiera è collegato naturalmente alla scheda madre, eliminando la necessità di ingombranti operazioni di connessione via cavo.

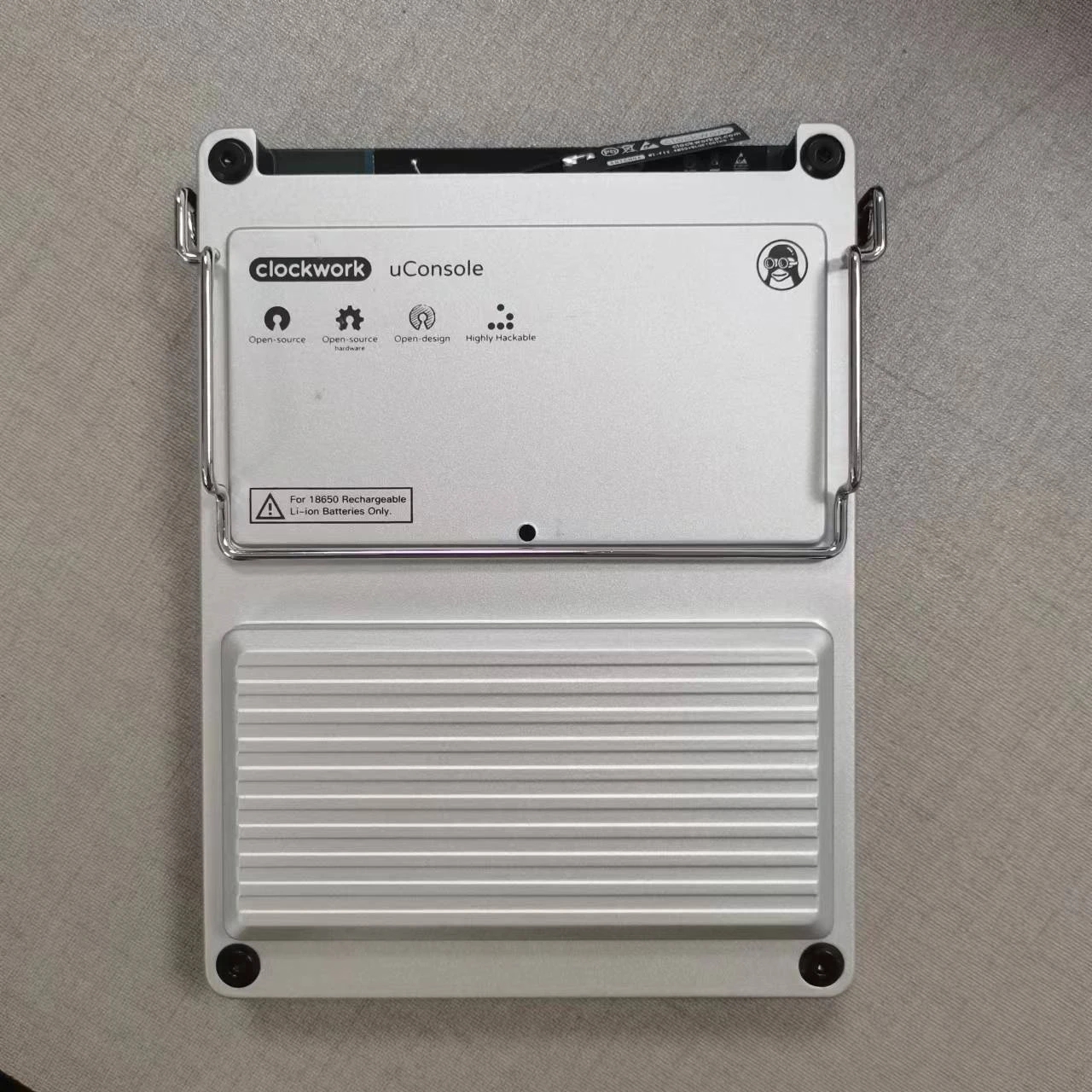

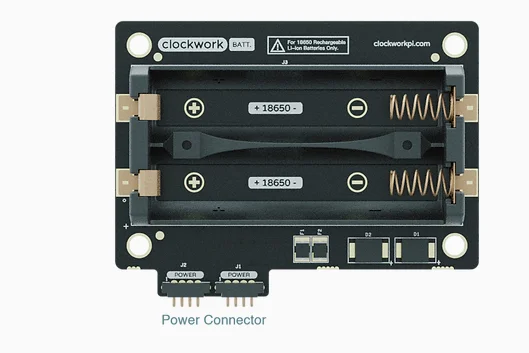

Battery module

The battery holder is carefully designed to make it more compatible with various 18650 battery sizes: Ø18±0.5mm diameter, 65-69 length mm.Il battery module has the “short circuit and reverse polarity protection” function.

Ideally, you can use a single 18650 battery to power your system, or replace the batteries one by one while you use the system.
