Processors | Intel Core i3 4010U, 2 cores 4 threads, 3M Cache, 1.70 GHz, TDP: 15W Intel Core i3 5005U, 2 cores 4 threads, 3M Cache, 2.0 GHz, TDP: 15W Intel Core i5 4200U, 2 cores 4 threads, 3M Cache, 1.60Ghz up to 2.60 GHz, TDP: 15W Intel Core i5 5200U, 2 cores 4 threads, 3M Cache, 2.20GHz up to 2.70 GHz, TDP: 15W Intel Core i7 5500U, 2 cores 4 threads, 4M Cache, 2.40GHz up to 3.00 GHz, TDP: 15W Intel Celeron 2955U, 2 cores 2 threads, 2M Cache, 1.40GHz, TDP: 15W Intel Pentium 3805U, 2 cores 2 threads, 2M Cache, 1.90GHz, TDP: 15W |
Graphics Card | 2955U: Intel HD Gprahics 3805U: Intel HD Graphics 4010U: Intel HD Graphics 4400 5005U: Intel HD Graphics 5500 5200U: Intel HD Graphics 5500 |

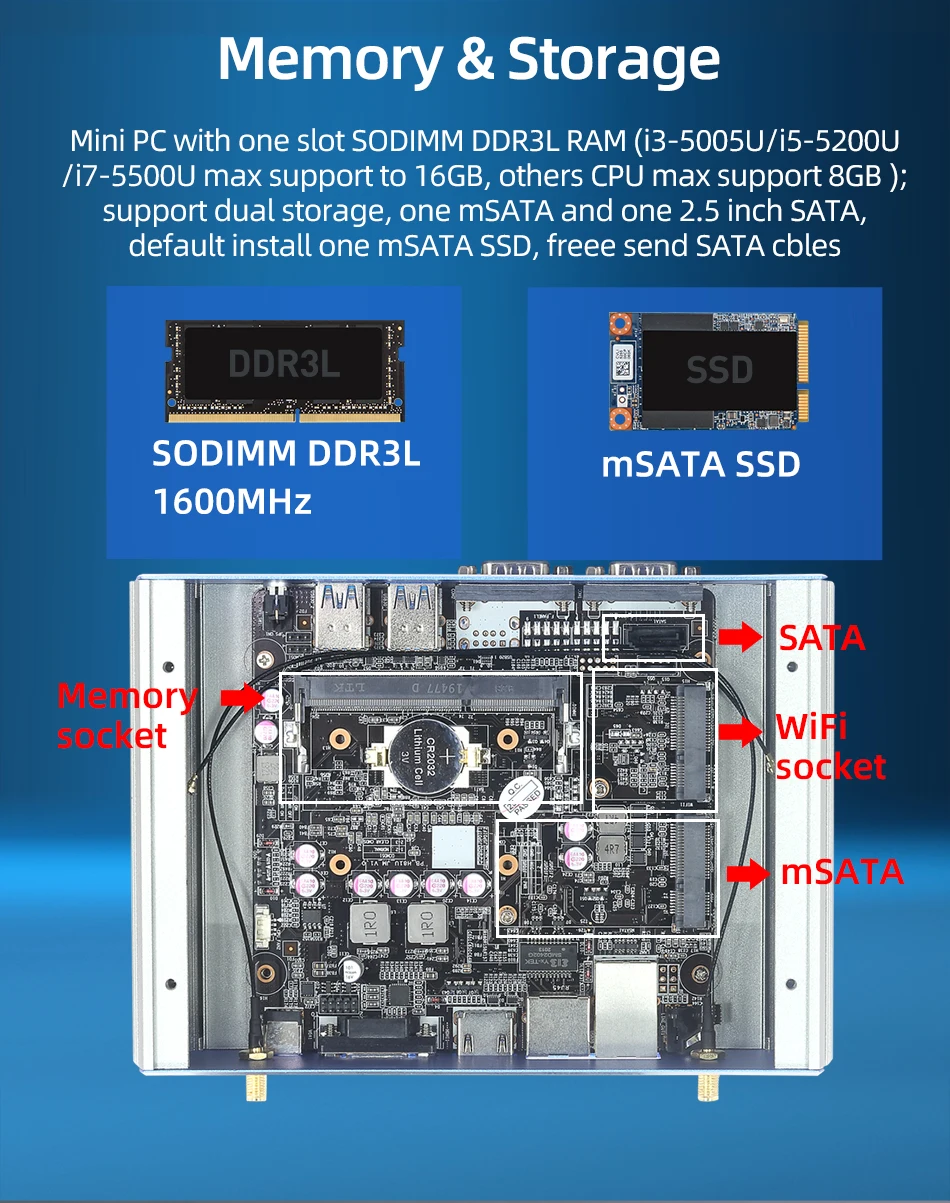

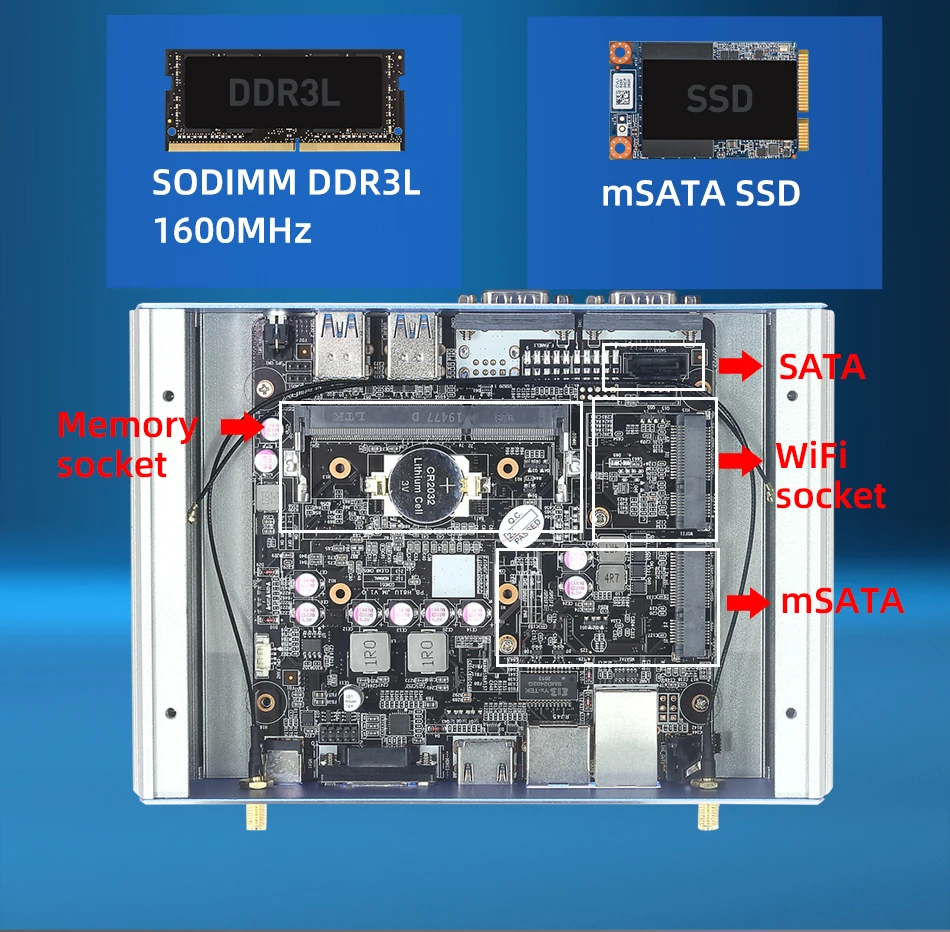

Memory(RAM) | DDR3L 1333/1600Mhz SO-DIMM 2955U/3805U/4010U/4200U/4500U max support to 1x 8GB RAM 5005U/5200U/5500U max support to 1x 16GB RAM |
Hard Disk(SSD) | Support 1* mSATA SSD + 1*2.5″ SATA HDD/SSD |

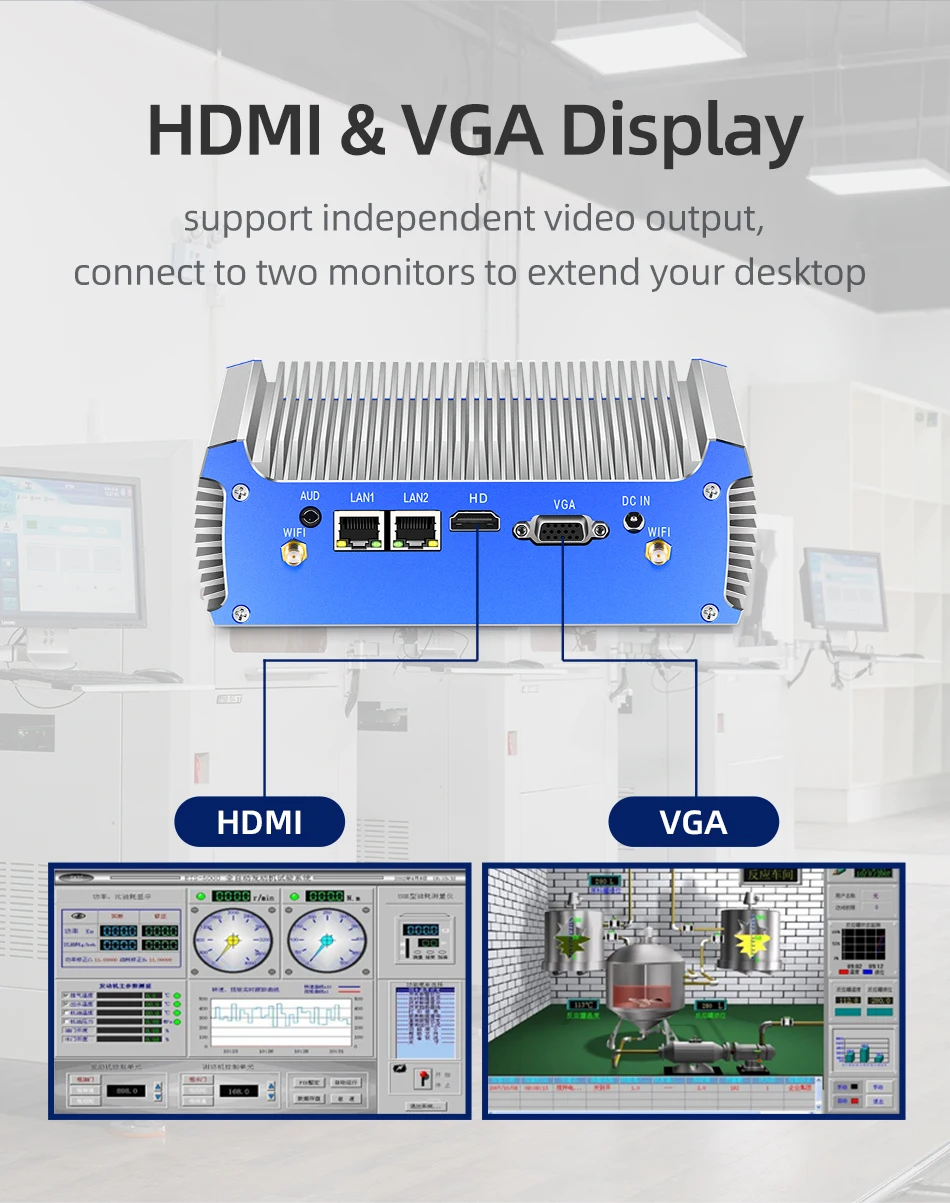

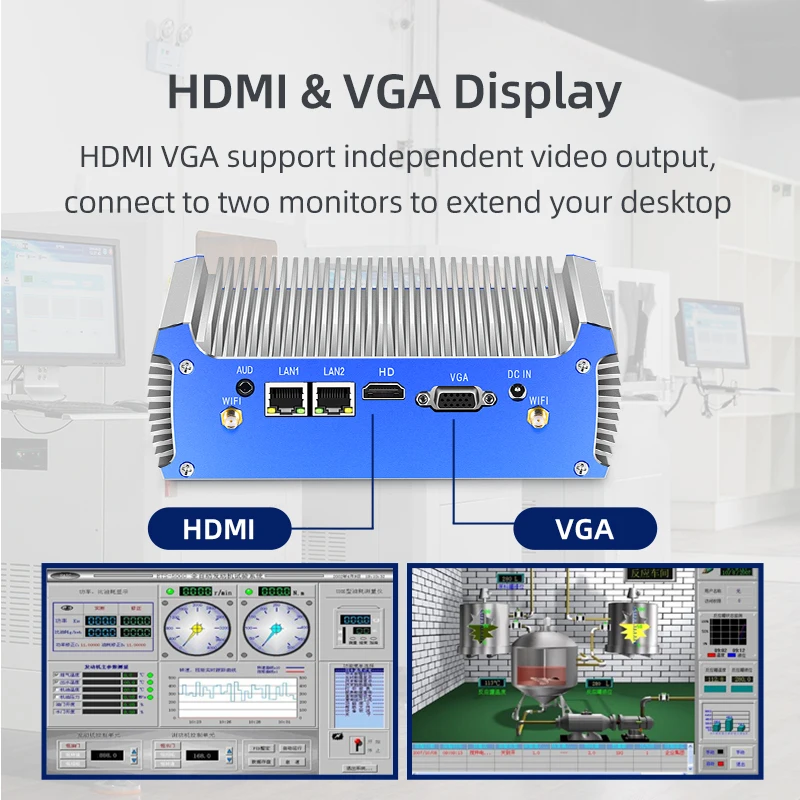

Dual Display | VGA x1, HDMI1.4 x1 |
Supported OS | Win 10/8.1/7, Linux, ubuntu, Openelec, etc. |

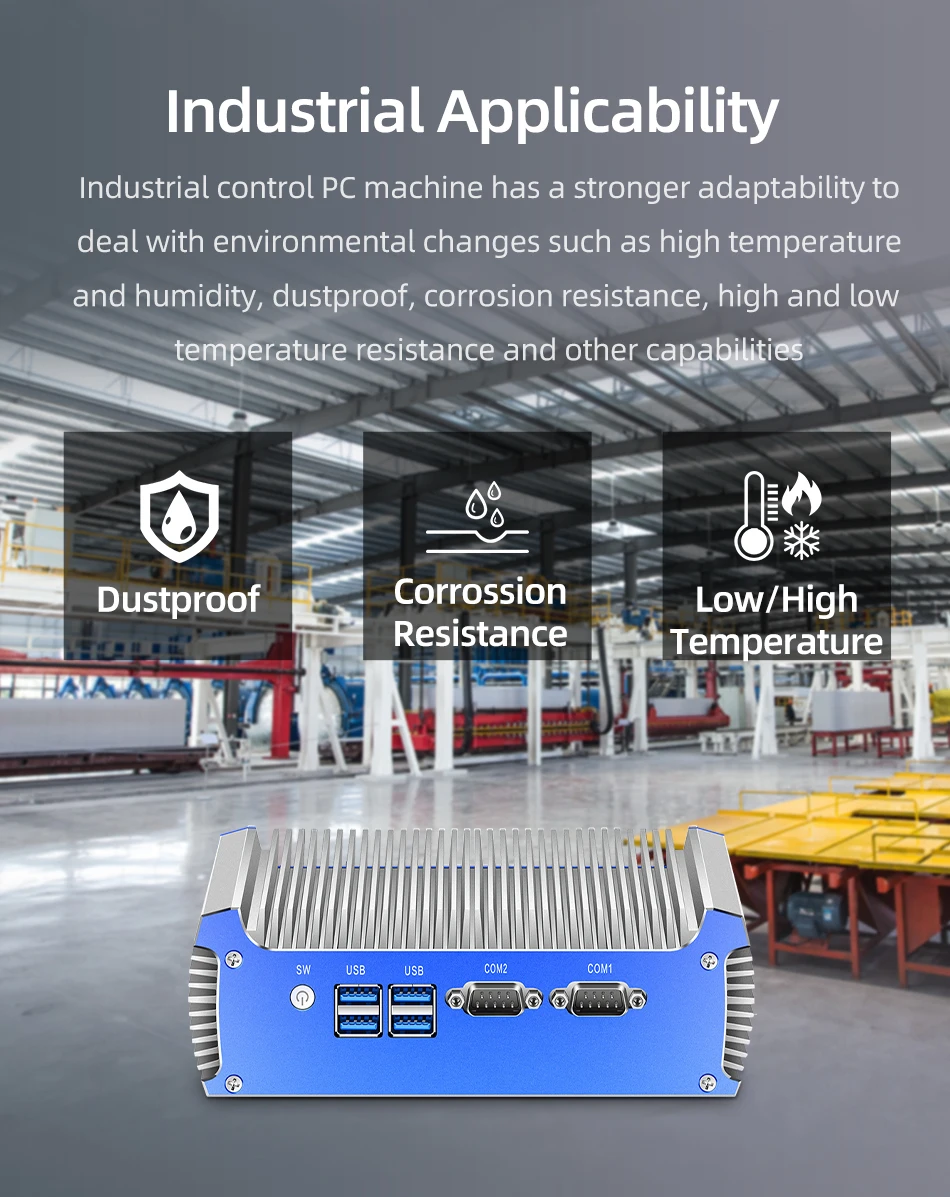

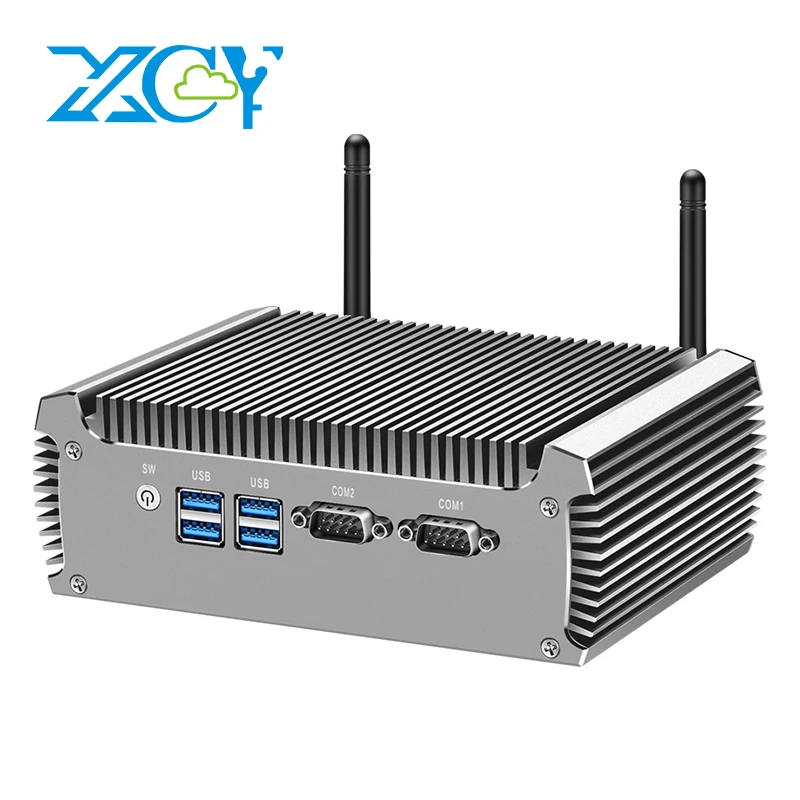

Front-Panel Connectors | Power ON/Off 2 x RS232 COM 4 x USB 3.0 ( or 2x USB3.0, 2x USB2.0 ) |

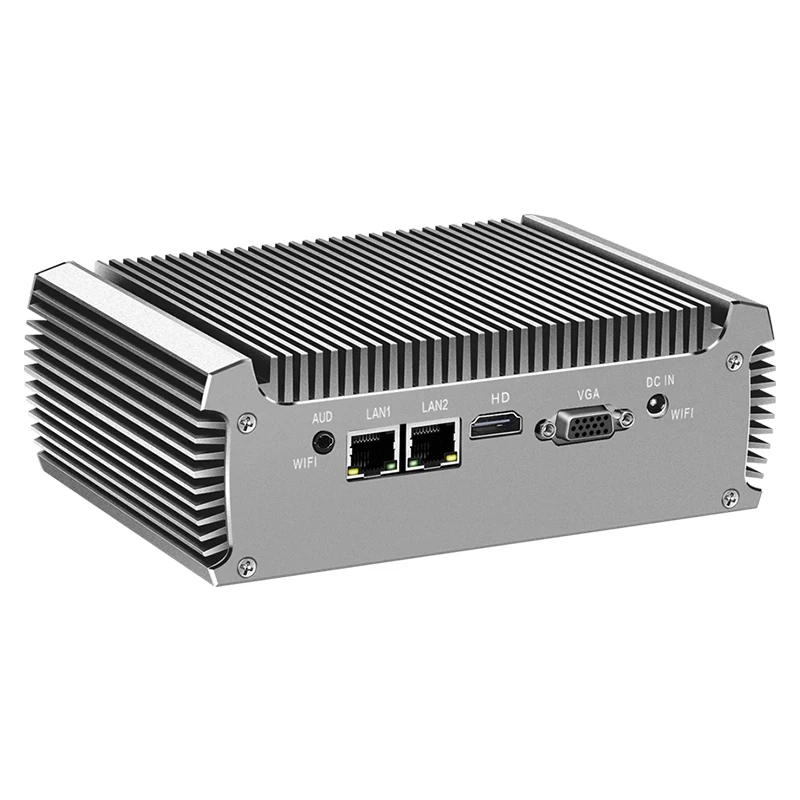

Rear-Panel Connectors | 1 x HDMI + 1x VGA 2 x LAN RJ45 10/100/1000 Mbps Adaptive |

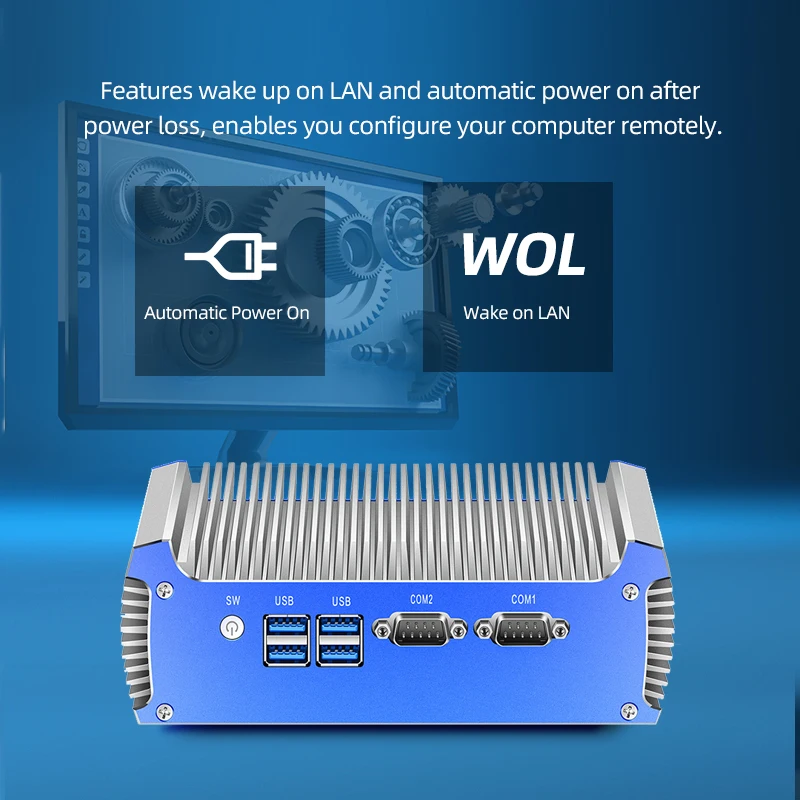

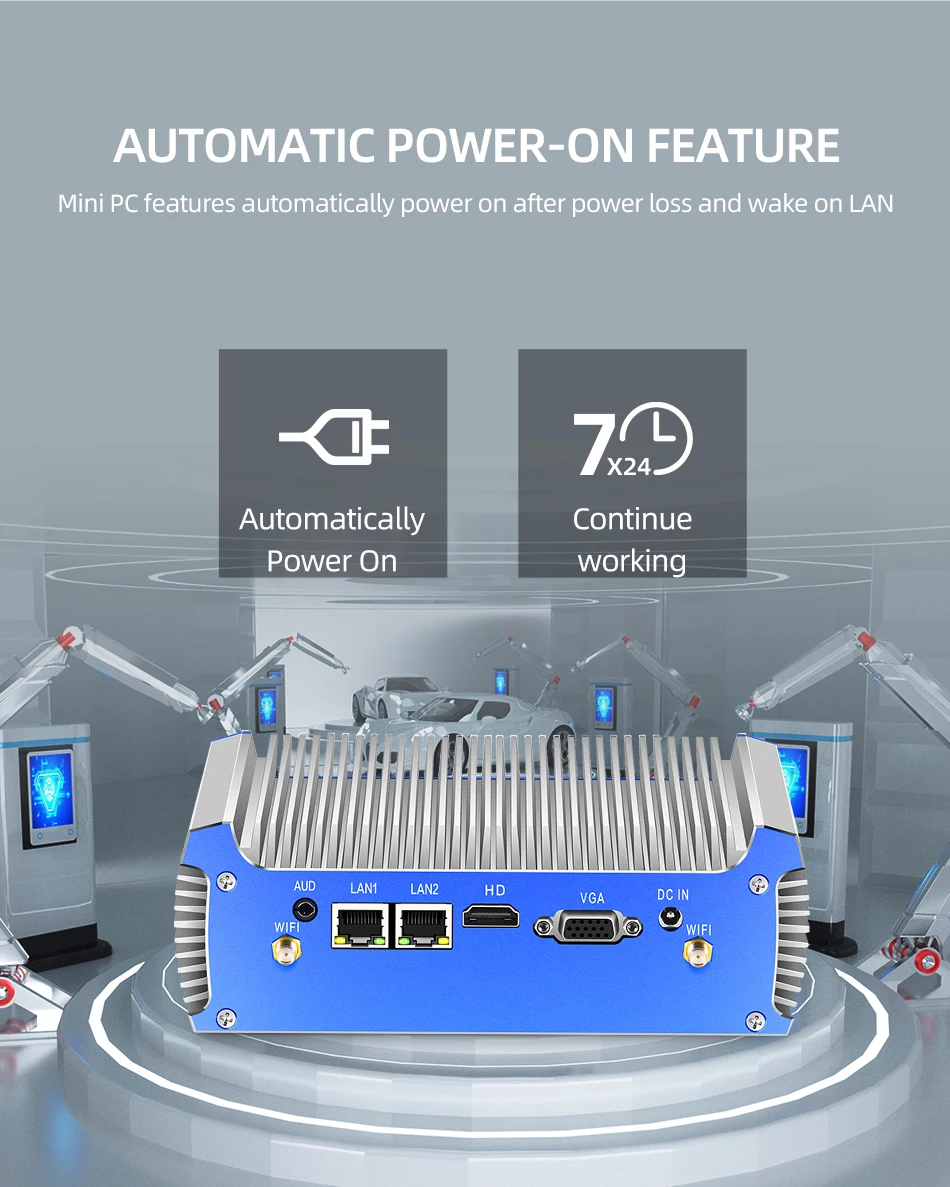

Ethernet port | 2 x RJ45 10/100/1000Mbps Realtek 8111F Gigabits Ethernet Support Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore on AC power loss. |
WIFI | Mini -PCIE , with dual antenna, 300Mbps |
Audio | Realtek ALC662 Audio Control Chip, support 2 Channels, Stereo, Line out |
Extension Options | 1 x Half Height Mini PCI-E |
Power | Input: DC100-240V AC/50-60Hz |
Mounted | VESA/Wall-mounted/Desktoped |

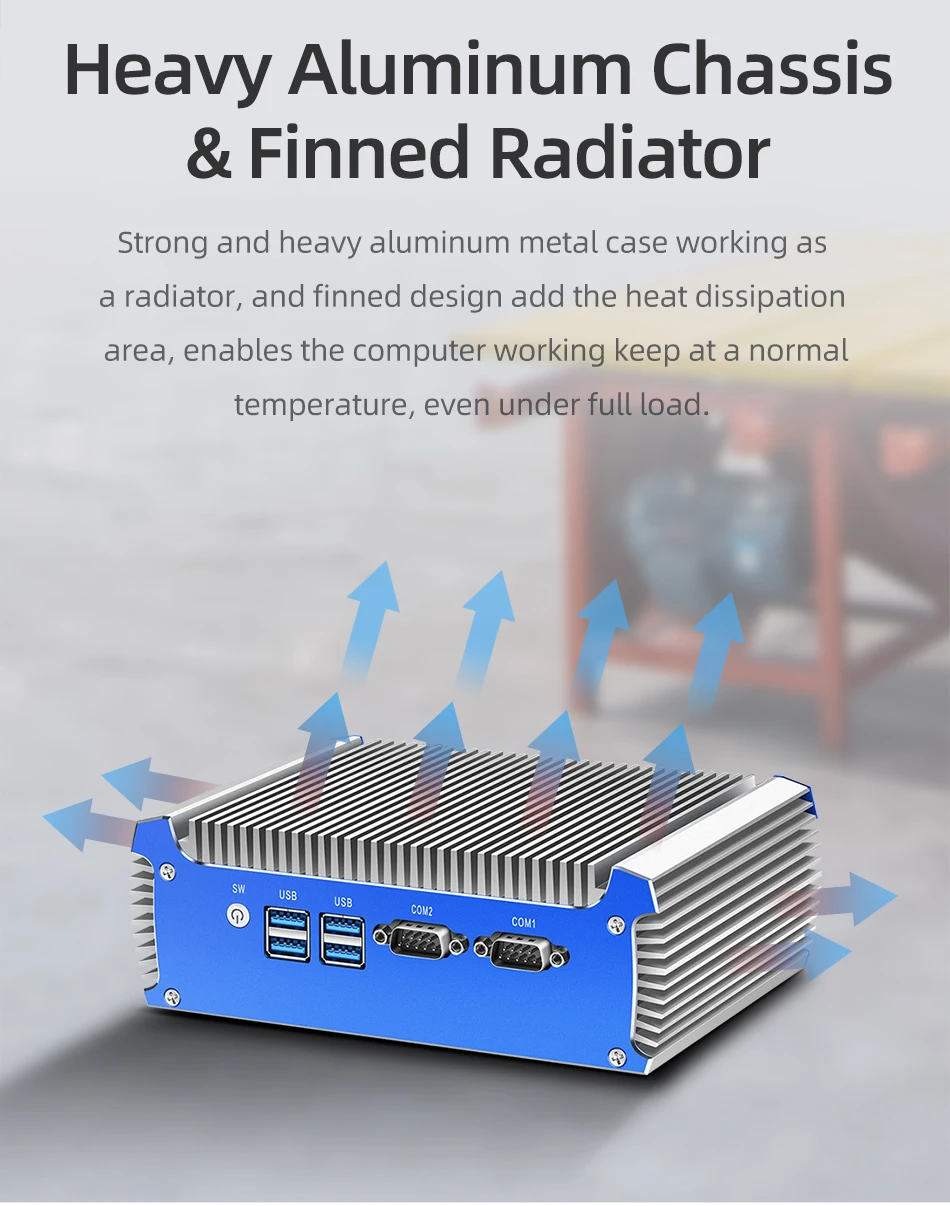

Cooling System | Fanless Passive Cooling with Heat Sink Aluminum Block |
Chassis Material | Aluminum Alloy |
Operating Temperature | -20-65℃ |
Storage Temperature | 15℃-35℃ |
Relative Humidity | 5%~95% (non-condensing) |
Dimension | 182.5*126.5*62.6mm |
Package Content | 1x Mini PC X46G 1x SATA Power Cable & SATA Cable 1x User Manual |
