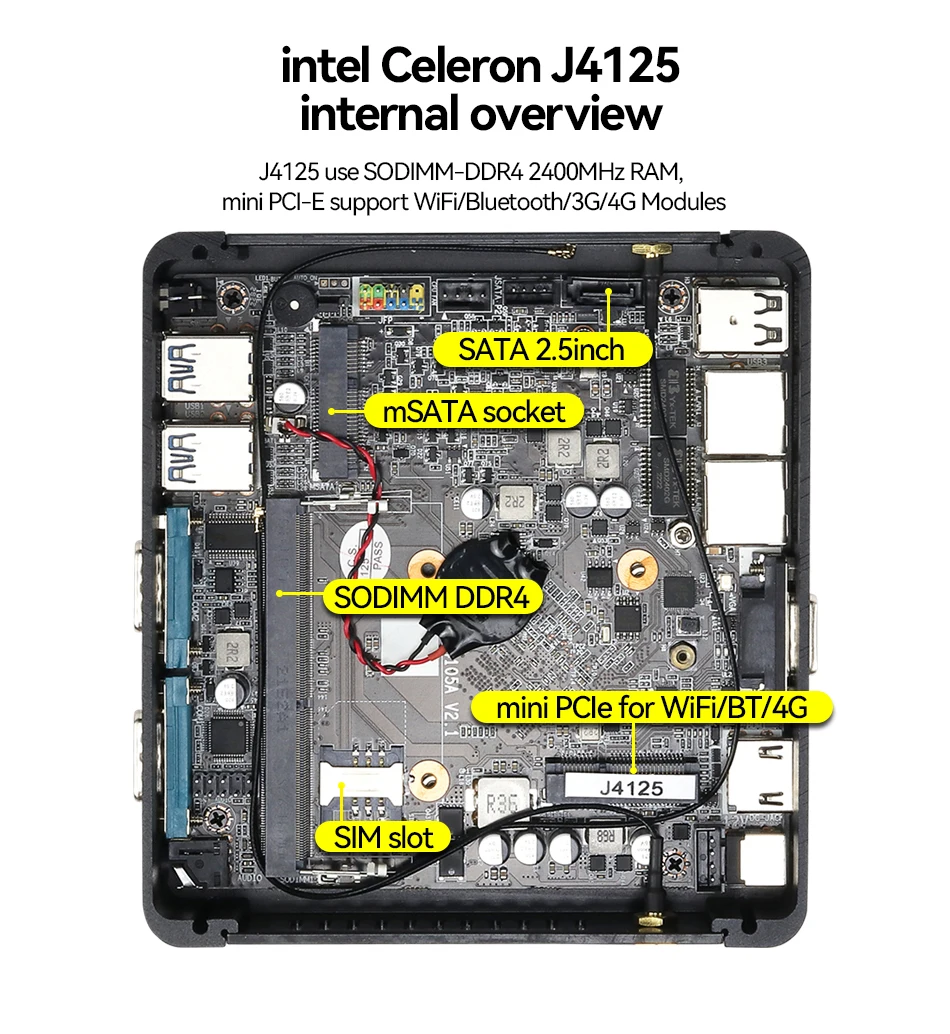

– Flexible RAM and storage, 1x memory slot, max support to 8GB; J6412 model supports one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD, other models support one mSATA SSD and one 2.5 inch SSD/HDD;

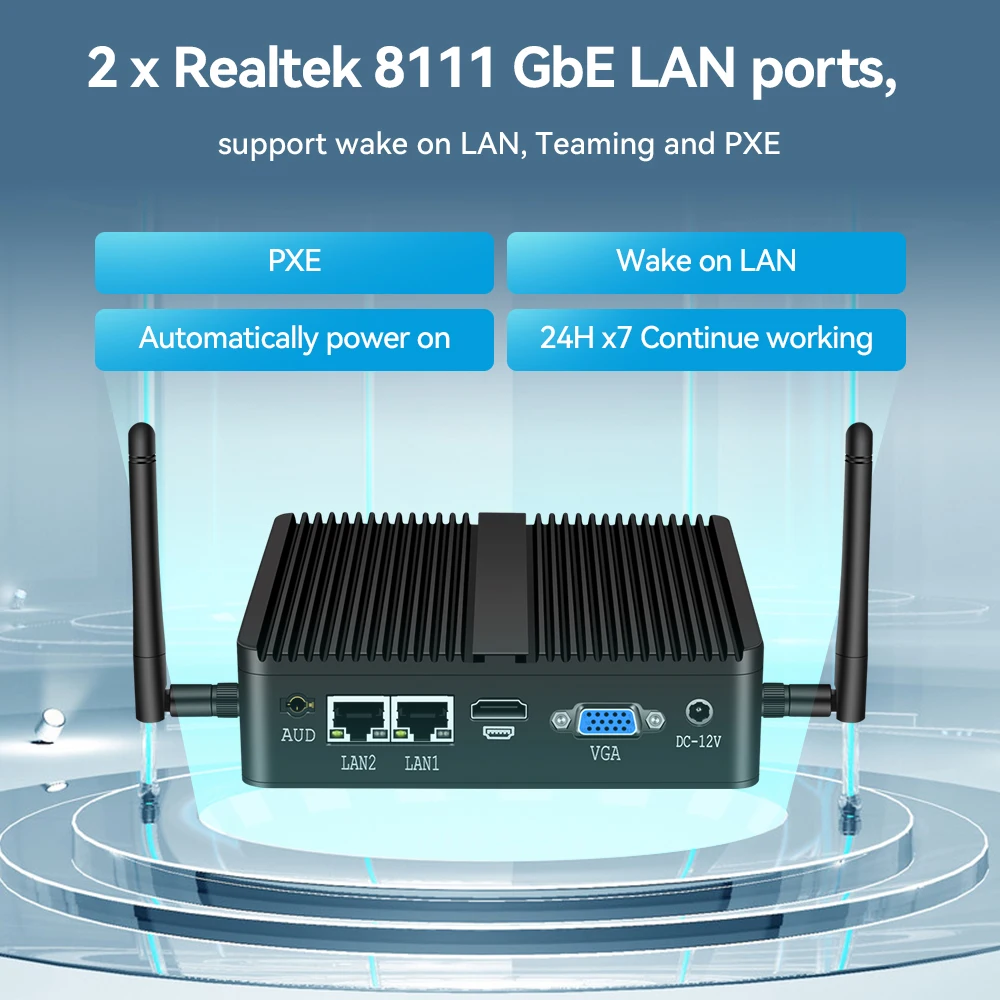

– 2x Realtek 8111H Gigabit Ethernet , support Wake on LAN, PXE boot.

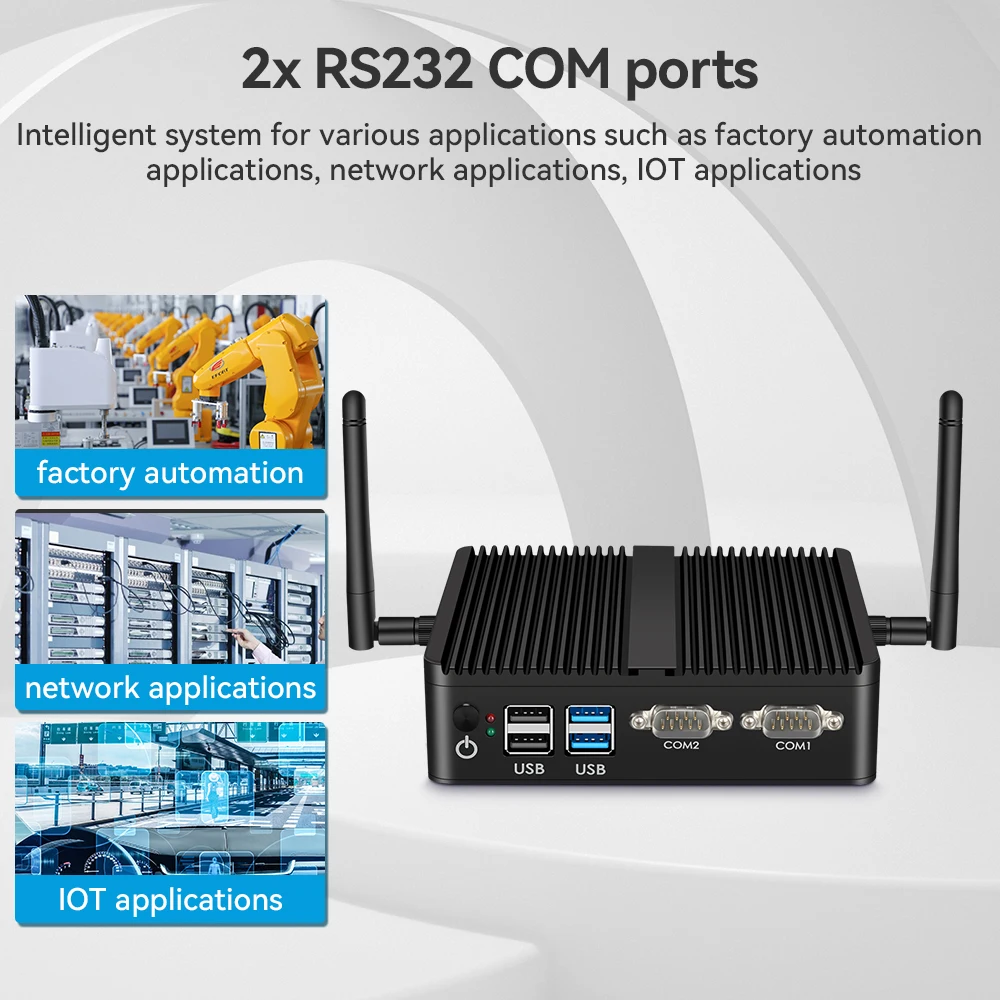

– 2x COM serial ports, J6412/J2900/N2840 model two COM ports support adjust to RS485/RS232, other models two COM ports are RS232 mode.

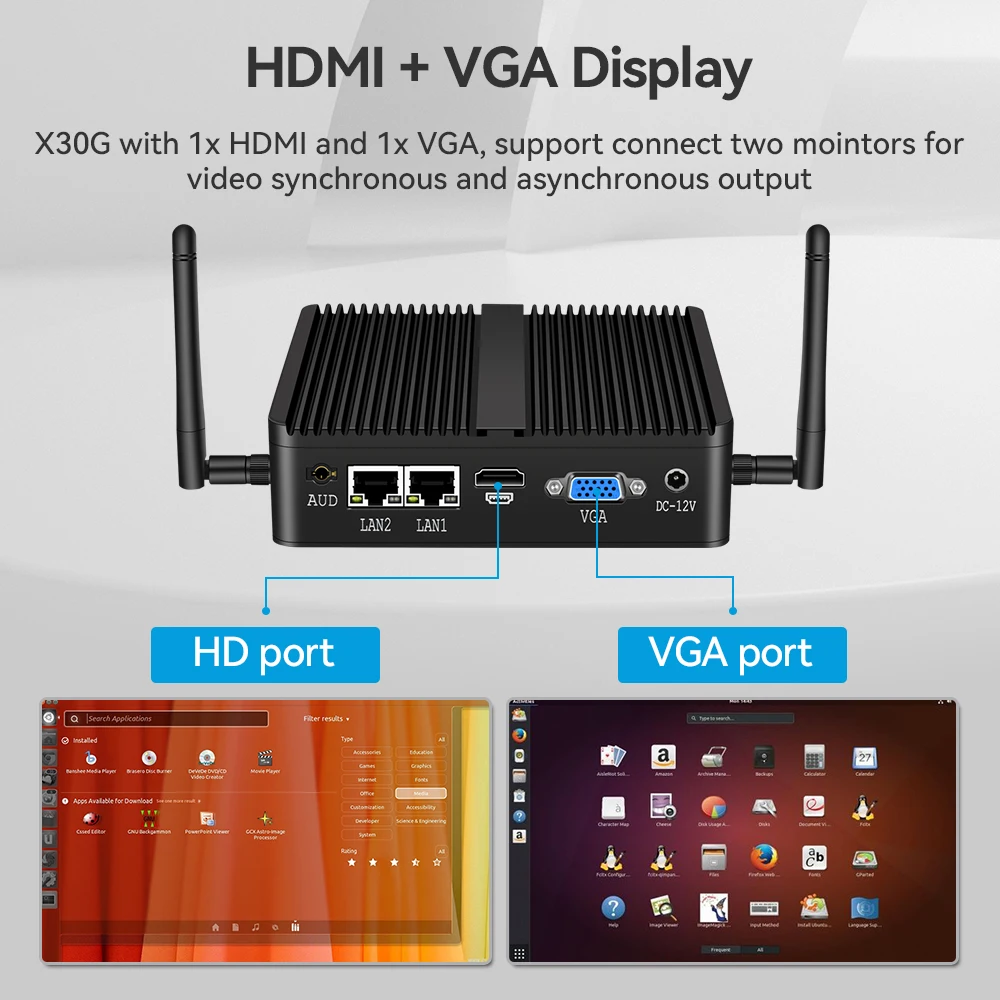

– HDMI VGA support independent HD video output;
– Fanless aluminum metal case heat dissipation;
– 1x mini PCIE slot support expandsion of WiFi/4G LTE Modules;
– Support automatically power on after AC power restored;
| Processors | Intel Celeron J4125, 4 cores 4 threads, 4M Cahce, 2.0GHz, up to 2.70GHz
Intel Celeron J6412, 4 cores 4 threads, 1.5M L2 Cache, 2.0GHz, up to 2.60GHz Intel Pentium J2900, 4 cores 4 threads, 2M Cache, 2.41GHz up to 2.66GHz Intel Celeron N2840，2 cores 2 threads, 1M Cache, 2.16GHz, up to 2.58GHz |
| Memory Types | J4125 J6412 processors use 1x SODIMM DDR4 RAM 2400MHz, other processors use 1x SODIMM DDR3L1333/1600MHz i3-5005U / J6412 max support to 1x 16GB RAM, others CPUs max support 1x 8GB RAM |
| Hard Drive Types | J6412 support 1x M.2 NVME/SATA 2280 SSD, 1x 2.5 inch HDD/SSD;
Other CPUs support 1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD |
| Processor Graphics | J4125: Intel UHD Graphics 600
J6412: Intel UHD Graphics for 10th Gen Processor 2955U/J2900/3805U/N2840: Intel HD Graphics i3-4005U: Intel HD Graphics 4400 i3-5005U: Intel HD Graphics 5500 |
| Network Interfaces | 2x GbE RJ45 Realtek 8111H, Support Wake on LAN, PXE boot |
| Expansion | 1x Mini PCI-E slot for WiFi/Bluetooth/3G/4G modules,
J6412/J4125/J2900/N2840 motherboards with SIM slot; |
| OS Support | J6412 support windows 11, windows 10, Linux/Ubuntu/CentOS
J4125 support windows 10, Windows 8.1, Linux/Ubuntu/CentOS i3-4005U/i3-5005U Celeron 2955U/N2840 Pentium 3805U/J2900 support Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/Centos |
| USB Ports | J4125 J6412: 4x USB3.0 + 2x USB2.0
J2900/N2840: 1x USB3.0 +5x USB2.0 |
| Display Port | 1x VGA, 1x HDMI,
supports dual monitors independently video output |
| COM Ports | J6412/J2900/N2840 : 2x RS-232/RS-485, jumper free setting
Other CPUs : 2x RS-232 |
| Audio Ports | Realtek RTL662/897 HD Audio, 3.5mm combo audio jack 2-in-1
Support MIC in, Line out |
| Construction | Fanless passive cooling |
| Case Materials | Aluminum Case |
| Dimension | 135x124x40mm |
| Netweight | 1.0Kg |
| Storage Temperature | ﹣20℃to +60℃ |
| Operating Temperature | ﹣20℃to +60℃ |
| RH | 5%~90% @30℃, Non-condensing |
| Working Voltage | DC12V-3A/5A (customize working voltage please contct us) |

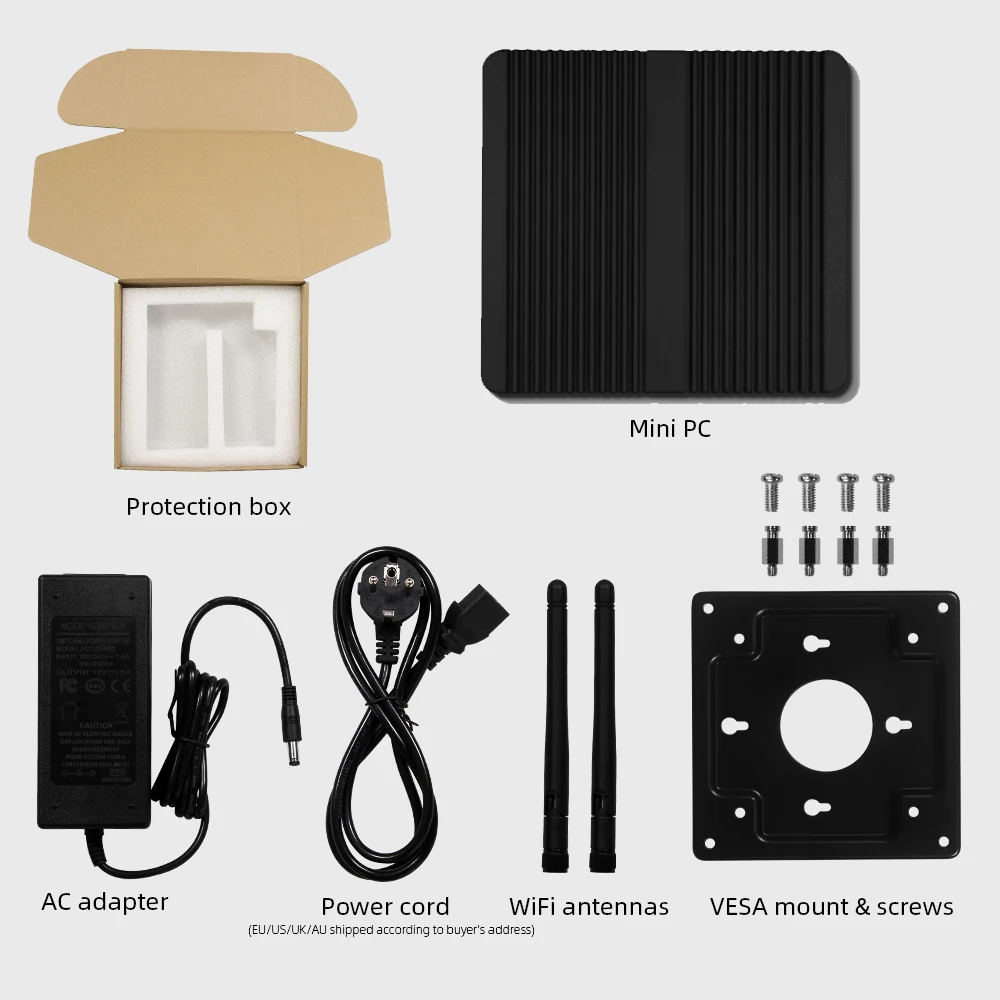

| Package List | 1x Mini PC X30G 1x AC Adapter 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cables 1x User manual |
